Expanded Polypropylene (EPP) foam molding process used to produce lightweight, durable, and impact-resistant foam components.
EPP foam is widely used in industries such as automotive, packaging, consumer goods, and aerospace due to its excellent energy absorption, thermal insulation, and recyclability.
Expanded Polypropylene (EPP) foam molding has emerged as one of the most versatile and efficient manufacturing processes for creating lightweight, durable, and energy-absorbing components across numerous industries.
This advanced molding technique transforms polypropylene beads into complex three-dimensional shapes with exceptional mechanical properties, making EPP foam products indispensable in automotive, packaging, consumer goods, and industrial applications.
Unlike traditional foam materials, EPP offers unique characteristics that set it apart—excellent impact resistance, thermal insulation, buoyancy, and the ability to withstand repeated stress without permanent deformation.
The molding process itself is a marvel of modern manufacturing, combining precise steam control, bead expansion technology, and innovative tooling designs to produce parts that meet the most demanding specifications.
What is EPP Foam?
Before delving into the molding process, it’s essential to understand what EPP foam is and why it has become such a valuable material in modern manufacturing.
Composition and Structure
Expanded Polypropylene (EPP) is a closed-cell bead foam made from polypropylene resin.
Each bead consists of numerous tiny, sealed air pockets that give the material its characteristic lightweight properties and energy absorption capabilities.
The cellular structure is created through a physical expansion process rather than chemical blowing agents, making EPP more environmentally friendly than many alternative foam materials.
Key Material Properties
EPP foam boasts several exceptional properties that make it ideal for a wide range of applications:
- Excellent impact resistance: Can absorb and dissipate kinetic energy effectively
- Lightweight: Typical density range of 20-200 kg/m³
- Thermal insulation: Low thermal conductivity (0.034-0.040 W/mK)
- Chemical resistance: Inert to most chemicals, oils, and solvents
- Temperature resistance: Stable from -40°C to 130°C (-40°F to 266°F)
- Buoyancy: Closed-cell structure provides excellent floatation properties
- Vibration damping: Effective at reducing vibration transmission
- Recovery ability: Returns to original shape after compression
- Hygienic: Non-toxic and resistant to microbial growth
Comparison with Other Foam Materials
EPP differs significantly from other common foam materials:
| Property | EPP | EPS (Expanded Polystyrene) | EPE (Expanded Polyethylene) | PU (Polyurethane) |
|---|---|---|---|---|
| Density Range | 20-200 kg/m³ | 15-50 kg/m³ | 20-45 kg/m³ | 30-300 kg/m³ |
| Impact Resistance | Excellent | Good | Moderate | Good |
| Temperature Resistance | -40°C to 130°C | -50°C to 75°C | -60°C to 80°C | -30°C to 120°C |
| Chemical Resistance | Excellent | Good | Good | Moderate |
| Recyclability | Fully recyclable | Difficult | Difficult | Difficult |
| Cost | Moderate | Low | Low | Moderate-High |
The unique combination of properties makes EPP particularly suitable for applications requiring durability, repeated impact resistance, and thermal stability.
The EPP Foam Molding Process: Step-by-Step
The EPP foam molding process is a carefully controlled sequence that transforms raw polypropylene beads into finished foam products.
Understanding each step is crucial for optimizing production quality and efficiency.
1. Raw Material Preparation
The process begins with virgin or recycled polypropylene resin in granular form.
These small, solid beads typically measure 1-3 mm in diameter before expansion.
The raw material may include additives for:
- Color (masterbatch pigments)
- Flame retardancy
- Anti-static properties
- UV stabilization
- Enhanced fusion characteristics
2. Pre-Expansion (First-Stage Expansion)
The solid polypropylene beads undergo initial expansion in a pre-expander vessel:
- Beads are fed into the pre-expansion chamber
- Steam is introduced at controlled temperature (typically 120-150°C)
- The heat causes the blowing agent (usually pentane gas) within the beads to vaporize
- As the gas expands, the beads grow 20-50 times their original volume
- Expanded beads are stabilized in a holding tank to equalize internal pressure
Key parameters in pre-expansion:
- Steam pressure: 1-4 bar
- Temperature: 120-150°C
- Residence time: 2-5 minutes
- Final bead density: Controlled by expansion ratio
3. Conditioning and Stabilization
After pre-expansion, the beads require a stabilization period:
- Beads are transferred to silos or storage bags
- They stabilize for 4-48 hours (depending on bead size and density)
- During this time, air diffuses into the beads while pentane diffuses out
- The stabilization ensures consistent molding performance
4. Mold Loading (Filling)
The stabilized beads are then loaded into the molding tool:
- The aluminum mold is preheated to 50-70°C
- Beads are pneumatically conveyed into the mold cavity
- Special filling systems ensure even distribution
- Vacuum may be applied to assist complete filling of complex geometries
Advanced filling techniques include:
- Multiple injection points for large parts
- Vibration-assisted filling
- Programmable filling sequences
5. Steam Chest Molding (Second-Stage Expansion)
The core of the EPP molding process involves steam chest molding:
- After mold closing, steam is injected into the mold’s steam chambers
- Steam penetrates the mold through small vents (0.1-0.3 mm diameter)
- The heat softens the bead surfaces while internal pressure causes further expansion
- Beads expand to fill all voids and fuse together at their surfaces
- Typical steam parameters:
- Temperature: 110-140°C
- Pressure: 1.5-3.5 bar
- Cycle time: 20-120 seconds (depending on part thickness)
6. Cooling and Stabilization
After fusion, the part must be cooled and stabilized:
- Cooling water circulates through mold channels
- Simultaneously, vacuum may be applied to accelerate cooling
- Internal water spray cooling may be used for thick sections
- Cooling time typically equals heating time
- The part shrinks slightly as it cools (0.3-0.8% linear shrinkage)
7. Ejection and Post-Processing
The final molded part is then ejected:
- Mold opens and ejector pins push the part out
- Minimal flash may be trimmed if necessary
- Parts may undergo additional processes:
- Printing or labeling
- Assembly with other components
- Quality inspection
- Surface treatments (painting, coating)
8. Quality Control
Rigorous quality checks ensure consistent product performance:
- Dimensional verification
- Density measurement
- Visual inspection for surface defects
- Mechanical testing (compression, impact)
- Sample destructive testing for fusion quality
Types of EPP Molding Machines
The EPP foam molding process utilizes specialized equipment designed to handle the unique requirements of polypropylene bead expansion and fusion.
Several machine configurations exist to accommodate different production needs.
1. Vertical Steam Chest Presses
- Mold opens vertically (up-down movement)
- Ideal for smaller parts and prototype development
- Lower initial investment cost
- Easier mold changes
- Typically lower production capacity (100-500 cycles/day)
2. Horizontal Steam Chest Presses
- Mold opens horizontally (side-to-side)
- Better for large parts and high-volume production
- Automated part removal easier to implement
- Higher production capacity (500-2000 cycles/day)
- Requires more floor space
3. Shuttle-Type Molding Machines
- Feature multiple mold stations
- While one mold is cooling, another can be filled/heated
- Significantly increases production throughput
- Ideal for high-volume manufacturing
- Higher capital investment required
4. Automated Production Lines
- Fully integrated systems with:
- Automatic bead feeding
- Robotic part removal
- Conveyor systems
- Automated packaging
- Maximum production efficiency
- Consistent quality through reduced human intervention
- Custom-designed for specific products
Machine Selection Considerations
Choosing the right EPP molding machine depends on several factors:
- Production volume: High volumes justify more automated systems
- Part size: Larger parts require bigger platens and more clamping force
- Part complexity: Complex geometries may need specialized filling systems
- Budget: Initial investment vs. long-term operating costs
- Future needs: Scalability and flexibility for product changes
Modern EPP molding machines often feature:
- PLC control systems with recipe management
- Energy recovery systems
- Advanced steam and vacuum controls
- IoT connectivity for Industry 4.0 integration
- Real-time monitoring and data logging
Mold Design for EPP Foam Molding
The mold is a critical component in the EPP foam molding process, directly influencing part quality, production efficiency, and tooling longevity.
Proper mold design requires specialized knowledge of EPP material behavior and molding dynamics.
Key Mold Components
- Mold Cavity: The negative impression of the final part shape
- Core: The matching half that completes the part geometry
- Steam Chambers: Channels that distribute steam evenly
- Venting System: Small holes allowing steam penetration (0.1-0.3mm diameter)
- Cooling Channels: For circulating cooling water
- Ejection System: Pins or plates for part removal
- Filling Ports: Entry points for bead introduction
Critical Design Considerations
Wall Thickness
- Typically 3-20mm for EPP parts
- Uniform wall thickness preferred
- Gradual transitions where thickness must change
Draft Angles
- 1-3° recommended for easy ejection
- More draft needed for textured surfaces
Vent Placement
- Even distribution across all surfaces
- Higher density in areas farthest from steam inlets
- Special attention to complex features
Steam Flow Optimization
- Balanced steam paths ensure even heating
- Computational fluid dynamics (CFD) analysis helpful
Cooling System Design
- Follows conformal cooling principles
- Matched to part geometry
- Separate circuits for different cooling rates
Advanced Mold Features
Quick-Change Systems
- Allow fast mold changes for flexible production
- Standardized mounting plates
- Integrated piping connections

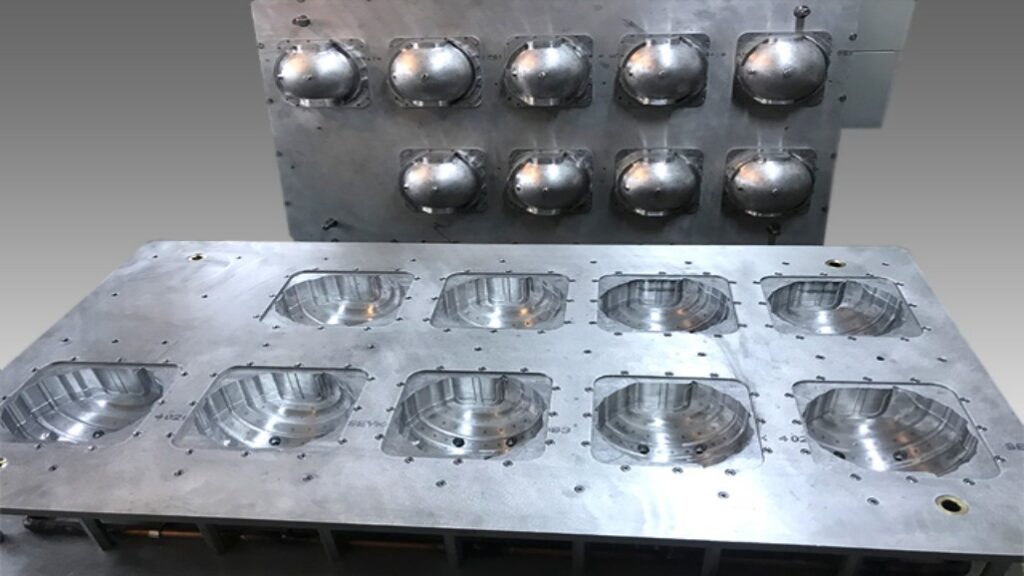

Multi-Cavity Molds
- Increase production output
- Require perfect balancing of filling and steam
Collapsible Cores
- For complex undercut geometries
- Increase tooling cost but expand design possibilities
In-Mold Labeling
- Decoration during molding
- Eliminates secondary operations
Mold Materials
- Aluminum: Most common (good thermal conductivity, lower cost)
- Beryllium-Copper: For high-wear areas
- Stainless Steel: For corrosive environments
- Special Coatings: To reduce sticking, improve release
Proper mold maintenance is essential for consistent quality:
- Regular vent cleaning
- Surface polishing
- Seal inspection
- Corrosion prevention
Process Parameters and Their Effects
Successful EPP foam molding requires precise control of numerous interacting parameters.
Understanding these variables allows manufacturers to optimize production for quality and efficiency.
Critical Process Parameters
- Bead Pre-Expansion Density
- Determines final part density
- Affects mechanical properties
- Typical range: 20-200 g/l
- Steam Temperature
- Affects fusion quality
- Too low: poor fusion
- Too high: bead collapse
- Range: 110-140°C
- Steam Pressure
- Drives bead expansion
- Affects cycle time
- Range: 1.5-3.5 bar
- Heating Time
- Must ensure complete fusion
- Depends on part thickness
- Typically 20-120 seconds
- Cooling Time
- Stabilizes part dimensions
- Prevents warpage
- Usually matches heating time
- Mold Temperature
- Affects surface finish
- Typically 50-70°C
- Higher for better surface detail
- Vacuum Level
- Used during cooling
- Speeds cycle time
- Range: 0.2-0.8 bar
Parameter Interactions
The EPP molding process involves complex interactions between parameters:
- Density vs. Mechanical Properties: Higher density increases strength but also weight and cost
- Steam Conditions vs. Cycle Time: Higher steam pressure/temperature can reduce cycle time but may affect quality
- Cooling Rate vs. Dimensional Stability: Rapid cooling can cause warpage or internal stresses
Process Optimization Strategies
- Design of Experiments (DOE)
- Systematic testing of parameter combinations
- Identifies optimal settings
- Statistical Process Control (SPC)
- Monitors key parameters
- Detects process drift
- Closed-Loop Control
- Automatic adjustment based on sensors
- Maintains consistent quality
- Energy Efficiency Measures
- Steam recovery systems
- Heat exchangers
- Insulated piping
Applications of EPP Foam Molded Products
The unique properties of EPP foam make it invaluable across diverse industries.
Its combination of lightweight, durability, and energy absorption continues to drive adoption in both traditional and innovative applications.
Automotive Industry
EPP has become a material of choice for automotive components due to its excellent energy management and weight savings:
- Seating Systems
- Seat cushions
- Backrest inserts
- Armrest cores
- Interior Components
- Door panel inserts
- Headliner supports
- Console components
- Safety Systems
- Bumper cores
- Knee bolsters
- Pedestrian protection
- Underbody Components
- Wheel arch liners
- Battery housings (EVs)
- Underfloor protection
Packaging Solutions
EPP’s cushioning properties make it ideal for protective packaging:
- Consumer Electronics
- TV back cushions
- Computer packaging
- Camera equipment cases
- Medical Device Packaging
- Diagnostic equipment
- Surgical instrument trays
- Pharmaceutical transport
- Industrial Packaging
- Automotive parts
- Machinery components
- Fragile item transport
Consumer Products
- Furniture Components
- Chair cores
- Table inserts
- Outdoor furniture
- Sports Equipment
- Helmets and protective gear
- Floatation devices
- Gym mats
- Children’s Products
- Car seats
- Play mats
- Toy components
Industrial Applications
- Material Handling
- Pallet components
- Dunnage
- Shipping containers
- Construction
- Insulation panels
- Acoustic damping
- Lightweight formwork
- Aerospace
- Aircraft interior components
- Satellite packaging
- Vibration isolation
Emerging Applications
- Electric Vehicle Battery Systems
- Impact protection
- Thermal management
- Structural components
- Renewable Energy
- Wind turbine component packaging
- Solar panel transport systems
- Medical Applications
- Prosthetic components
- Orthopedic devices
- Rehabilitation equipment
Advantages of EPP Foam Molding
The EPP foam molding process offers numerous benefits that explain its growing popularity across industries.
These advantages span technical performance, economic factors, and environmental considerations.
Technical Advantages
- Design Freedom
- Complex geometries possible
- Undercuts and intricate features
- Variable wall thickness
- Integrated functions (hinges, living joints)
- Weight Reduction
- Significant mass savings vs. solid materials
- Density can be precisely controlled
- Critical for automotive and aerospace
- Energy Management
- Excellent impact absorption
- Progressive compression behavior
- Multiple impact resistance
- Thermal Properties
- Effective insulation
- Temperature stability
- Low thermal conductivity
- Durability
- Resists fatigue
- Moisture resistant
- Chemical inertness
Economic Benefits
- Material Efficiency
- Minimal waste (unused beads can be recycled)
- No need for machining from solid
- Lightweight reduces shipping costs
- Tooling Advantages
- Aluminum molds cost-effective vs. injection molding
- Faster mold fabrication
- Longer tool life (lower pressures)
- Production Efficiency
- Relatively fast cycle times
- Energy efficient process
- Low labor requirements
- Total Cost of Ownership
- Long product lifespan
- Reduced warranty claims (durability)
- Lower logistics costs
Environmental Benefits
- Sustainability
- 100% recyclable
- Can use recycled content
- No CFCs or HCFCs in production
- Energy Savings
- Lightweight reduces transportation energy
- Insulation properties save operational energy
- Clean Production
- No chemical blowing agents
- Minimal emissions
- Water can be recycled
- End-of-Life Options
- Mechanical recycling
- Thermal recovery
- Chemical recycling (emerging)
Conclusion
The EPP foam molding process is a highly efficient, sustainable, and versatile manufacturing method for producing lightweight yet durable foam products.
Its superior impact resistance, thermal insulation, and recyclability make it ideal for automotive, packaging, and industrial applications.
By understanding the EPP molding process, manufacturers can optimize designs, reduce costs, and enhance product performance.
As industries shift toward sustainability and lightweight materials, EPP foam will continue to play a crucial role in innovative manufacturing solutions.
